Application:
The inside of furnace doesn't contain any carbon,which avoids the pollution of carbon.
Applicable for sintering high temperature pure material. Less working zone,especially
for doing the experiment in laboratory. Also used to do the degassing of less product.
Features:

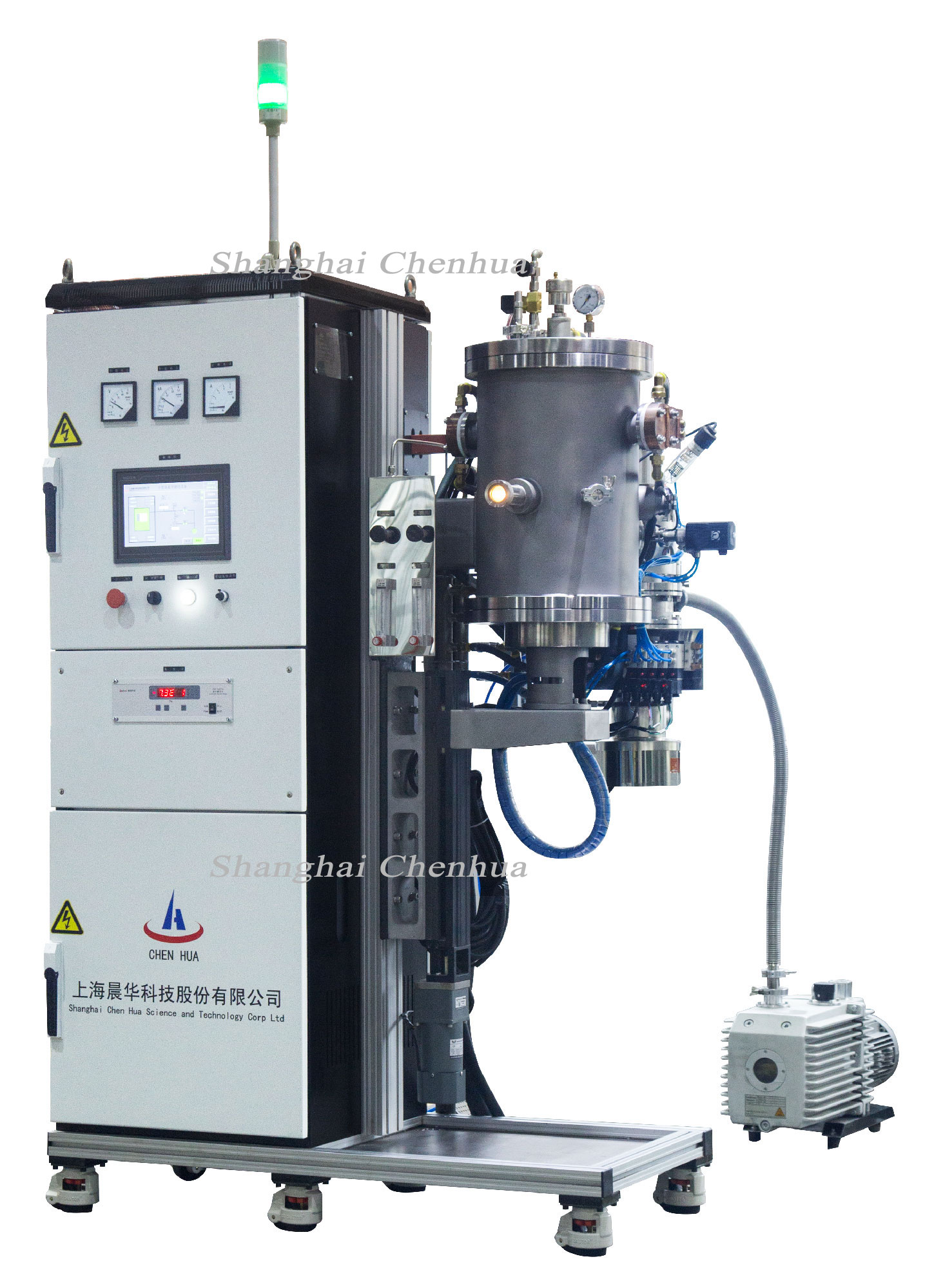

The furnace uses molybdenum wire as heating element with the whole metallic thermal
insulation shield and pure molybdenum loading platform.Special design of thermal insulation
shield to ensure the better uniformity of temperature,less deformation, long using life.
Occupying less space, simple to operate it, easy to move it.
Main technical parameters:
Model | Rated Power | Max. Temperature | Working Size | Ultimate Vacuum |
ZM-10-16 | 10KW | 1600℃ | ?60X80mm | 10-3Pa |
ZM-25-16 | 25KW | 1600℃ | ?80X100mm | 10-4Pa |
ZM-36-15 | 36KW | 1500℃ | ?60X120mm | 10-3Pa |
