Application:

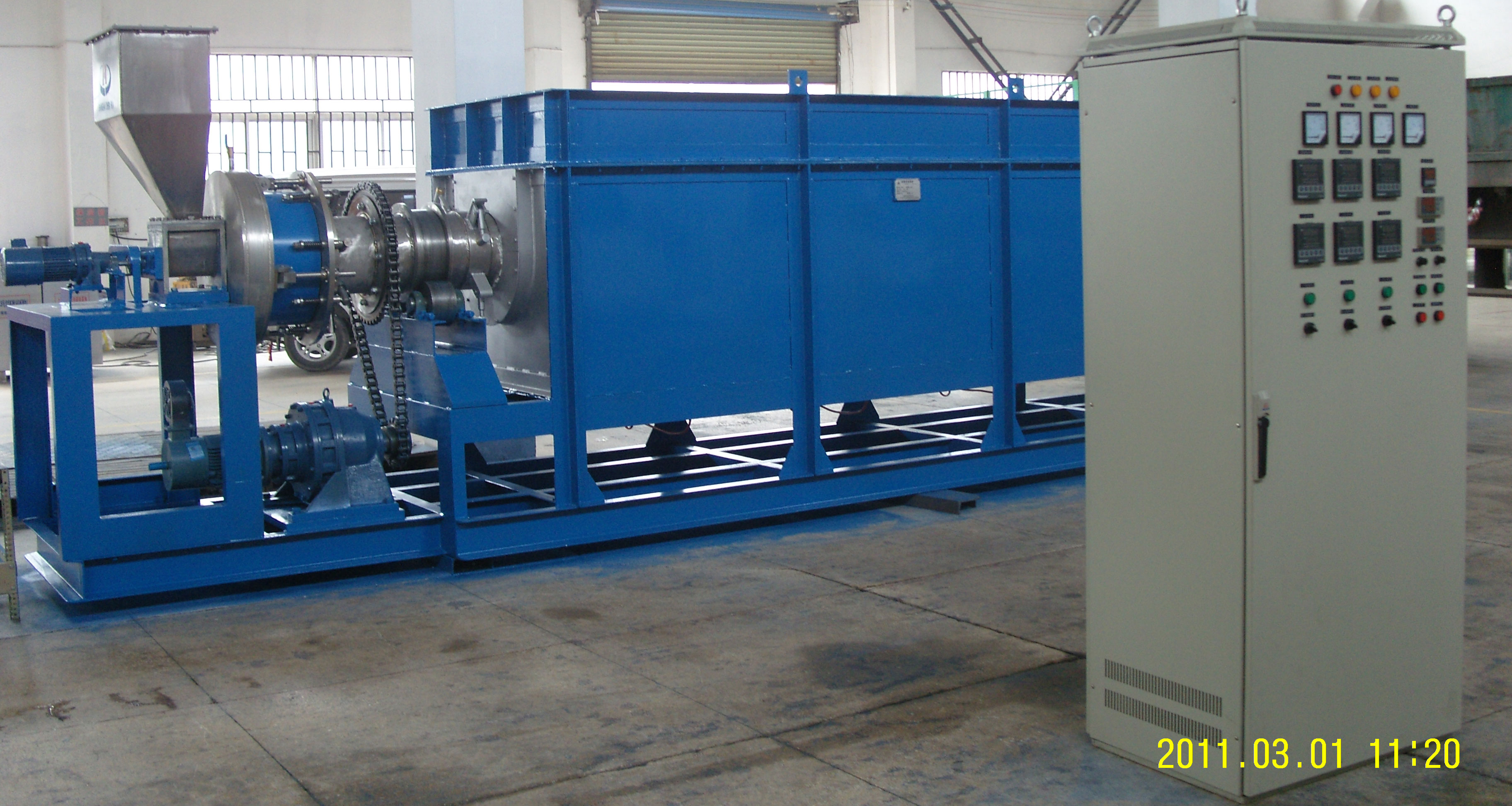

Rotary resistance furnace is mainly used for the high temperature calcination of powder or grain material in the
long cylinder vessel, inclined slightly to the horizontal, which is rotated slowly about its axis.
Features:
effective, energy saving and perfect air tightness
Main structure:
1.Furnace main housing
2.Furnace lining/insulation
3.Heating elements
4.Rotary tube
5.Furnace turning mechanism
6.Furnace tilting mechanism
7.Powder feeding mechanism
8.Product collection container
9.Sealing mechanism at bosth ends
10.Temperature control system
Main technical parameters:
| No. | Model | Rated power | Max. Temperature | Working zone | Rotary speed | Furnace tilt angle | Temperature zone |
| 1 | GR-15-9 | 15KW | 950℃ | ?100×1400mm | 0-6rpm | 0-10° | 3 |
| 2 | GR-75-8 | 75KW | 950℃ | ?305×3100mm | 0-6rpm | 0-3° | 4 |
| 3 | GR-220-8 | 220KW | 950℃ | ?610×6100mm | 0-6rpm | 0-3° | 4 |
| 4 | GR-400-9 | 400KW | 950℃ | ?920×9000mm | 0-6rpm | 0-3° | 6 |
